10 inch HTC,Workpiece diameter[mm] Ø460,Workpiece length[mm] 640
MACHINE SPECIFICATIONS
(HTC) 1 TS 1 Turret

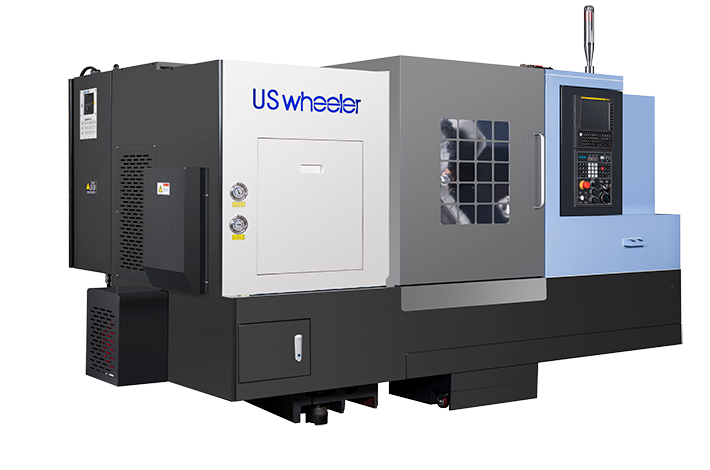

LT 300 A

Product line up - Machine specifications - LT Series - Similar products - Comparison
Characteristics
Servo MotorLMGBall Screw
TURRETXZX
Model variations
2160

CategoryItemSpecification
CapacitySwing over bed[mm]560
WorkpieceWorkpiece diameter[mm]Ø460
Workpiece length[mm]640
ChuckChuck size(S1)[in]10
Turning spindle 1(S1)Barworking dia.[mm]74
Tool post 1(T1)No. of tool stations[ea]12
TravelsStroke X[mm]260
Stroke Z[mm]680
Rapid traverse(X)[m/min]30
Rapid traverse(Z)[m/min]24
CategoryCNC brandFanuc
Siemens
CNC systemS828D/F0i-TF
OriginChina

Turning spindle 1(S1)

Spindle nameS1-1
Turning spindle no. 1 max. speed[r/min]3000
Bearing inner dia.(front)[mm]
Interface(S1)A2-8
Available chucks
Turning spindle 1 thru hole dia.[mm]87
Output[kW]15！18.5
Torque[Nm]
Turning spindle 1 transmission

Tool post #1(T1)

Name
Tool holder
Tool shank
Boring bar50
Position12
Index time
Speed
Power
Torque

Guide way

AxisXZ
Guide wayLMGLMG
Qty22

Photo gallery

MACHINE SPECIFICATIONS
Not responsible for misprints or data errors. Actual product appearance may differ.
